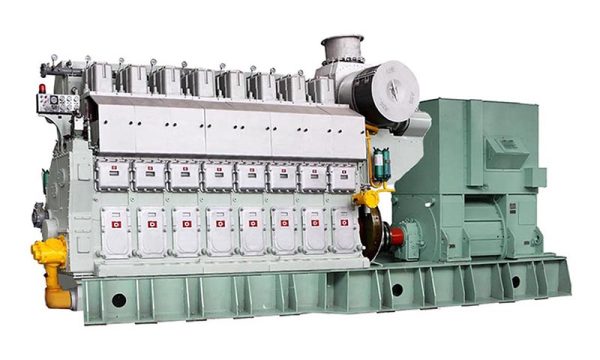

CSI Ningdong DF330/340 Series Dual Fuel Generator Set (2000 – 3500kW)

Model Portfolio Table

Generator Model 2000GF-S 2200GF-S 2500GF-S 3000GF-S 3200GF-S 3500GF-S
Rated output (kW) 2000 2200 2500 3000 3200 3500
Engine Model DF6330 DF6330 DF6330 DF8330 DF8340 DF8340
Bore x Stroke (mm) 330 / 340 x 450
Engine Type Four-Stroke, In-line, direct Injection, Turbocharged, Intercooled
Engine Rated Power (kW) 2206 2427 2795 3319 3676 3800
Speed (rpm) 50Hz / 60Hz@600
SFOC (g/kW·h) 194+3% (during fuel mode)
SFGC (KJ/kW·h) 8600 (at rated power)
SLOC (g/kW·h) ≤0.6
Gas Supply Pressure 4 – 6 bar
Substitution Rate 70 – 85% (at 50%-85% rated power)

Electrical Performance



Voltage

Voltage no-load regulation range % 95~105
Voltage fluctuation rate % ±1
Steady state voltage regulating rate % ±2.5
Transient voltage regulating rate % ±20~-15
Stabilization time s 1
Alternator Excitation method   Brushless AVR


Frequency

Steady-state frequency (rev.) regulating rate % 5
Frequency (rev.)  fluctuation rate % ±0.5
Transient frequency regulating rate % ±10
Stabilization time s < 5
Frequency regulating method



Auto / Manual


Protection

Over Speed 115% Nr   A, T, S Reverse Power -9.6% Pn A, T
LO. Pressure 0.25MPa A, 0.15MPa T, S Over Current 130% In A, T
Freshwater Temperature 80℃ A, 85℃ T, S Over Voltage 120% Vn A, T
LO. Temperature 90℃ A Overload 110% In A

Notes: All engine rating data is based on ISO 3046/1.
Reference conditions: Ambient 45℃, Relative humidity 60%, Intercooler coolant inlet 32 ℃.
If test ambient conditions are not the same as the fiducially ambient conditions. The power shall be revised according to ISO3046-1: 2002.
Fuel characteristics: MDO, Lower heat value:42700kj/kg, Consumption tolerance: +5%.
Power: An overload of 10% is permitted for one hour every twelve hours of operation.

Characteristics:

  • Meet with: ISO8528, ISO3046, GB/T13032.
  • Marine medium speed engine driven, unrestricted service configured, IMO Tier IID2 certified.
  • Brushless self-excited alternator with AVR, G3 electricity quality.
  • Application:Power plant set, Marine Auxiliary power.
  • As offer customized power plant solutions with multi-options fuels of diesel, LPFO/HFO, biofuel, natural gas, tire pyrolysis oil, etc.
  • Easy installation, high reliability, low noise, low operating cost, and environmentally friendly.

Outline

CSI Ningdong DF330340 Series Dual Fuel Generator Set 02

Gensets Dimensions(approx.)

Model A B C Weight
mm mm mm (kg)
2000GF 8050 2600 4289 53000
2200GF 8050 2600 4289 53500
2500GF 8100 2600 4289 56000
3000GF 9400 2580 4220 75000
3200GF 9450 2680 4650 79000
3500GF 9508 2680 4650 79500

Remarks: Dimensions and weight are for reference only. For generator set model selection, please make communicate with relevant personnel. The delivery scope for each model engine shall be performed as per the corresponding technical files.
