CSI Ningdong N210G Series Marine Gas Generator Set (350 - 1000kW)

Parameters Table

Item Unit Technical Parameters
Engine Type   Four-stroke, water-cooled, in-line, turbocharged and intercooled, inlet multi-point injection, prechamber spark plug ignition
Cylinder Bore × Stroke mm 210 × 300
No. Cylinder   6 / 8
Revolution rpm 750 – 1000
Compression Ratio   12.5 : 1
Mean Effective Pressure bar 14.1 – 17.4
Engine Thermal Efficiency   41.5%
SFGC KJ/kW·h 9000 (at rated power)
SLOC g/kW·h ≤0.6
Gas Supply Pressure bar 5 – 8
Fuel Type   LNG or CNG
Direction of Rotation   Starboard engine: clockwise(aft. end)

Port engine: anticlockwise(aft. end)

Cooling System   Closed circulating water cooling
Alignment Method   Flexible coupling
Starting Mode   Compressed air motor
Minimum Height for Lifting Piston mm 1650 (above crankshaft centerline)
NOX Emission Standard   IMO Tier III
Generator Rated Power kW 350 – 1000
Power Factor    0.8(lagging)


Voltage

Steady-State Voltage Regulating Rate % <±2.5
Transient Voltage Regulating Rate % -15~+20
Stabilization Time s <1.5
Voltage Fluctuation Rate % ≤±1


Frequency

Steady State Frequency (rev.) Regulating Rate % <5(parallel)
Transient Frequency (rev.) Regulating Rate % ≤±10
Stabilization Time s <5
Frequency Fluctuation Rate % ≤±0.5

Model Portfolio Table

Model Rated Power (kW) Revolution (rpm) Frequency (Hz) Engine Model Alternator Model Dimensions (mm) Net Weight (Kg)
CCFJ350J(Z) 350 720/750 50/60 N6210G Siemens / CMXD 5830×1895×2965 19800
CCFJ400J(Z) 400 720/750 50/60 N6210G 5830×1895×2965 19800
CCFJ500J(Z) 500 720/750 50/60 N6210G 5950×1895×2965 20400
CCFJ520J(Z) 520 720/750 50/60 N6210G 5950×1895×2965 20400
CCFJ600J(Z) 600 720/750 50/60 N6210G 5980×1985×2965 21000
CCFJ720J(Z) 720 900/1000 50/60 N6210G 5980×1985×2965 20300
CCFJ800J(Z) 800 900/1000 50/60 N6210G 6040×1985×2965 20600
CCFJ1000J(Z) 1000 900/1000 50/60 N6210G 7280×2300×3270 26000

Notes: All engine rating data is based on ISO 3046/1.
Reference conditions: Ambient 45℃, Relative humidity 60%, Intercooler coolant inlet 32 ℃.
If test ambient conditions are not the same as the fiducially ambient conditions. The power shall be revised according to ISO3046-1: 2002.
Power: An overload of 10% is permitted for one hour every twelve hours of operation.

Characteristics:

  • Meet with: ISO8528, ISO3046, GB/T13032.
  • Marine medium speed engine driven, unrestricted service configured;IMO Tier III certified.
  • Brushless self-excited alternator with AVR, G3 electricity quality.
  • Application:Power plant set, Emergency automatic start power, Marine Auxiliary power.
  • As offer customized power plant solutions with multi-options fuels of diesel, LPFO/HFO, biofuel, natural gas, tire pyrolysis oil, etc.
  • Easy installation, high reliability, low noise, low operating cost, and environmentally friendly.

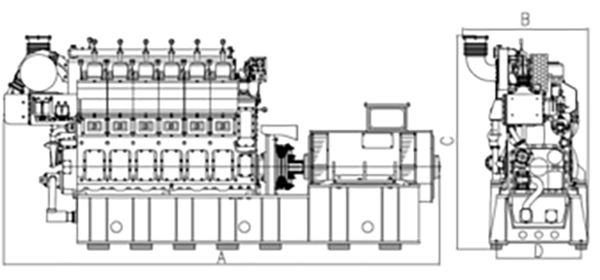

Outline

CSI Ningdong N210G Series Marine Gas Generator Set (350 - 1000kW)01

Remarks: Dimensions and weight are for reference only. For generator set model selection, please make communicate with relevant personnel. The delivery scope for each model engine shall be performed as per the corresponding technical files.
